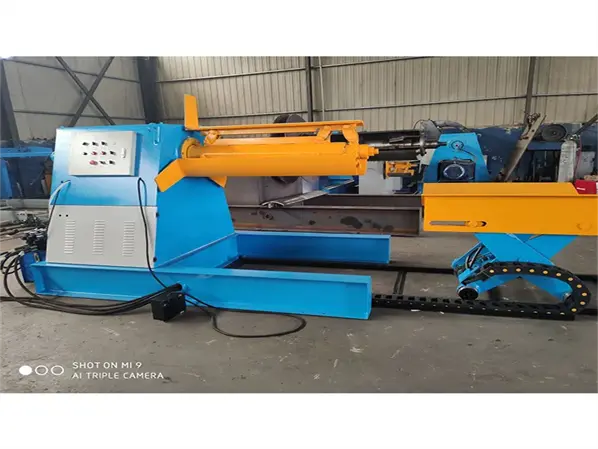

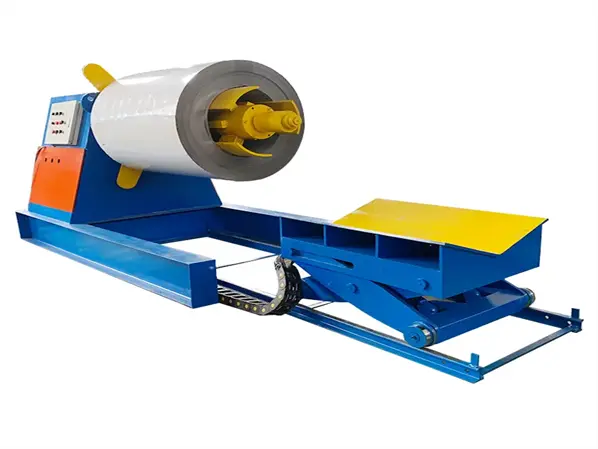

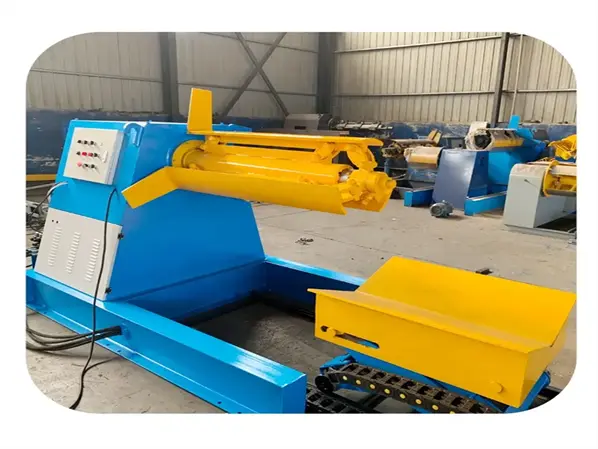

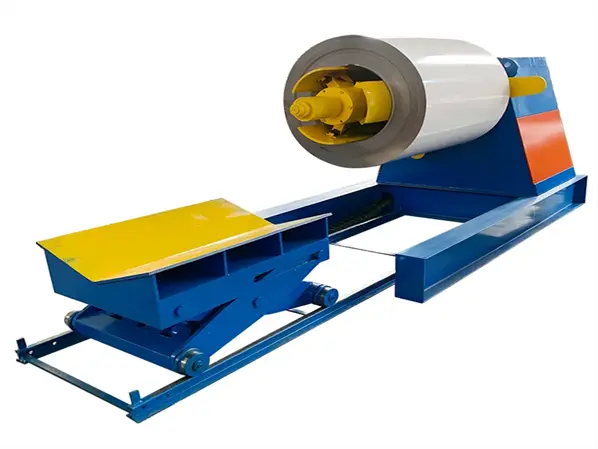

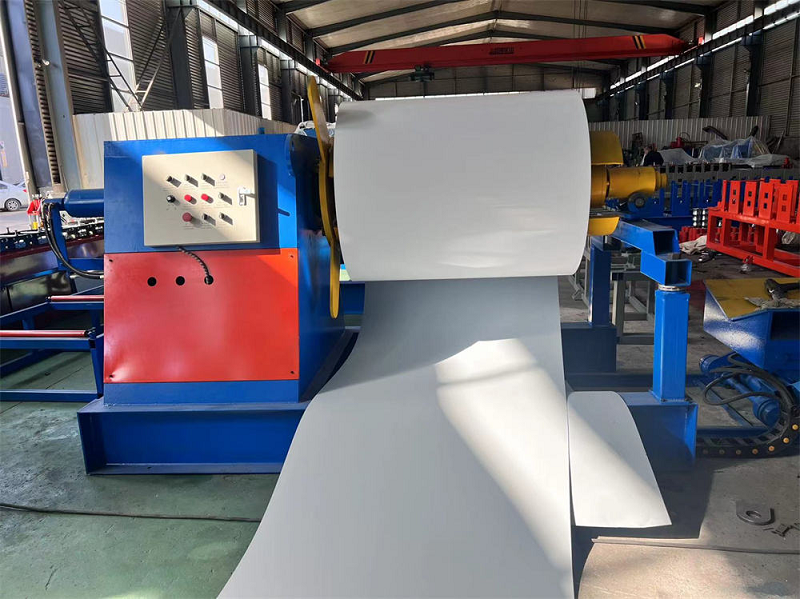

Efficient, Durable & Powerful Hydraulic Decoiler/Uncoiler Machine
The main shaft of the hydraulic decoiler/uncoiler machine serves two essential functions: first, it drives the steel coil to rotate; second, it supports the tension of the steel coil. This tension is typically maintained by an oil cylinder or air cylinder installed alongside the main shaft, which pushes the inclined slide block. Smaller units often utilize air cylinders, while larger units typically employ oil cylinders for enhanced performance. The rotation of the hydraulic decoiler/uncoiler machine is achieved by a motor that drives the main shaft through a reducer, ensuring smooth and efficient operation.
Our hydraulic uncoiler for sale is designed with a high-precision uncoiler frame that can move smoothly along the guide rail of the machine base. This movement is powered by a hydraulic cylinder, enabling precise center position control during coil loading and unwinding operations.
To improve the overall stability and performance of the hydraulic decoiler/uncoiler machine, a robust support arm device is integrated at the reel head. When a steel coil is mounted on the reel, the support arm, driven by a hydraulic cylinder, securely supports the reel head, effectively minimizing vibration and ensuring smooth operation.
Under normal conditions, the support arm retracts automatically, ensuring that it does not interfere with the coil winding or unwinding process. This intelligent design makes the hydraulic decoiler/uncoiler machine both highly stable and efficient, delivering reliable performance for various metal processing applications.
| Item | value |
| Place of Origin | China |
| Brand Name | SQ |
| Condition | New |
| Machine Type | Hydraulic decoiler/uncoiler |
| Video outgoing-inspection | Provided |
| Warranty | 12 Months |
| Core Components | Motor, Pump |
| Key Selling Points | Easy to Operate |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Construction works, Steel Construction |
| After-sales Service | Engineers available to service machinery overseas |
| Control System | PLC |
| Max Support | 3-10 tons |
Automating Coil Handling for Continuous Production: A hydraulic decoiler/uncoiler machine dramatically improves manufacturing efficiency by replacing manual handling with automated coil loading, clamping, and feeding. Instead of operators stopping the line to reposition or adjust coils, the hydraulic decoiler/uncoiler machine performs these tasks automatically, allowing production to move continuously with fewer interruptions.
Stronger and More Reliable Coil Clamping: One of the most valuable features of a hydraulic decoiler/uncoiler machine is its hydraulic expansion mandrel, which delivers a powerful clamping force. This ensures the industrial workshop machinery holds coils firmly in place even at high rotation speeds. The hydraulic decoiler/uncoiler machine prevents slippage and ensures steady coil movement, protecting material integrity, reducing scrap, and maintaining accurate machine alignment.
Maintaining Precision with Stable Tension Control: Another major advantage of using a hydraulic decoiler/uncoiler machine is the precise tension control it provides. Since the hydraulic decoiler/uncoiler machine keeps material feeding steady, downstream systems receive consistent material flow. As a result, the hydraulic decoiler/uncoiler machine helps reduce misalignment, material distortion, inaccurate cuts, and scrap, improving total line accuracy.
Built for High-Speed Automated Processing: A hydraulic decoiler/uncoiler machine is specifically designed to maintain smooth material payoff even when line speed increases. During rapid processing, the hydraulic decoiler/uncoiler machine automatically adjusts coil feeding to avoid vibration, bouncing, or abrupt tension changes. This makes the hydraulic decoiler/uncoiler machine highly suitable for smart manufacturing and automated assembly lines.
Boosting Output and Reducing Operational Costs: By automating core coil handling tasks, a hydraulic decoiler/uncoiler machine decreases the number of operators required on the line, improves efficiency per employee, and reduces labor fatigue. Instead of managing coil rotation manually, staff can focus on inspection, output monitoring, and quality assurance. Over time, the hydraulic decoiler/uncoiler machine offers lower part costs, better material yield, shorter cycles, and higher output.
Our company is committed to delivering advanced metalworking solutions that help manufacturers improve efficiency, accuracy, and production output. Whether upgrading an existing production line or designing a new facility, our metal working machinery for sale provides the performance, reliability, and long-term value required to stay competitive in today’s industrial market.

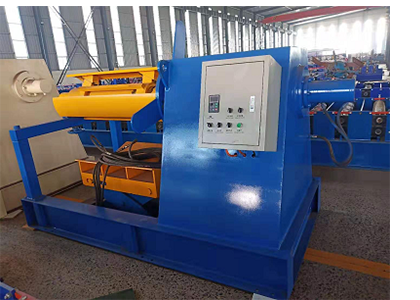

Machine frame
Hydraulic decoiler. Main frame: It is made of section steel, A3 steel plate, #45 steel forged bearing seat after assembly welding, and is qualitatively annealed without deformation; two bearing seats are made by boring at one time to ensure the concentricity of the spindle installation and no diameter to jump.

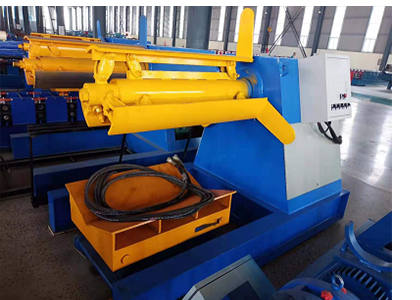

Coil reel
Hydraulic decoiler expansion and shrinkage reel: adopts slider type push-pull expansion reel form; four arc-shaped plates, wire-cut slider pair, expansion and contraction diameter Ф460~Ф520; effective working length 1300 mm, integral mandrel ensures that the reel is concentric when expanding and shrinking Degree, hard chromium plating on the surface of the reel.

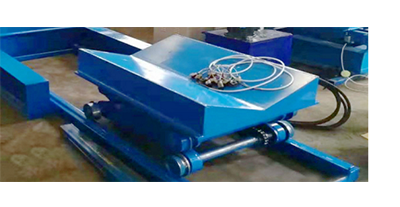

Loading car
Hydraulic decoiler load car. It can rise and fall, forward and backward, and change the inner diameter, outer diameter and load capacity of the automatic feeding material rack.

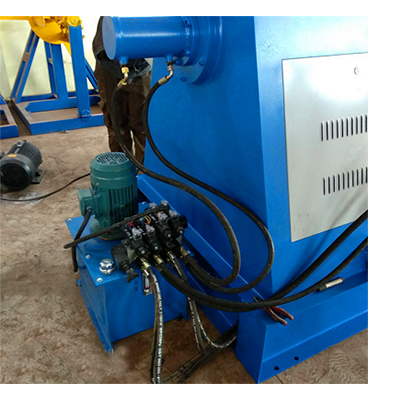

Hydraulic station
Hydraulic decoiler motor. The function of the hydraulic station, the hydraulic station is generally an electro mechanical device that provides lubrication and power for the operation of machinery produced by large and medium-sized industries. The main task of a hydraulic system is to transform power from one form to another.
