Factory-Direct Precision Engine Lathes for Sale
Standard engine lathes, also known as metal engine lathes, are horizontal machining tools designed for a variety of operations on workpieces like shafts, disks, and rings. These precision engine lathes for sale are capable of internal and external rotating surface work, as well as end face and thread machining. Due to their reliability, these precision engine lathes make up approximately 65% of the lathe market. The horizontal spindle design provides stability for operations like drilling, reaming, tapping, and knurling when using optional accessories. Stable quality, on time delivery ，Check our latest engine lathe price for durable solutions!

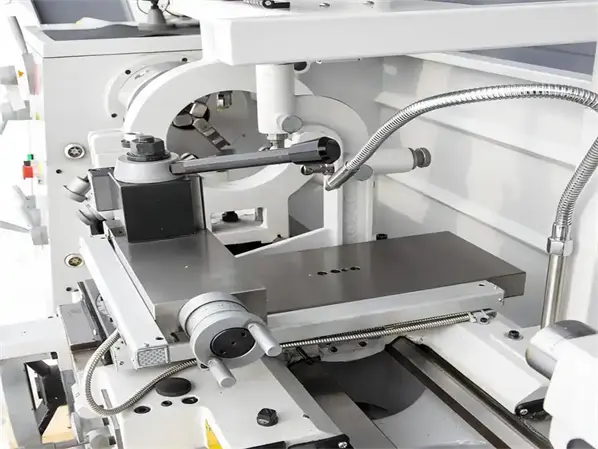

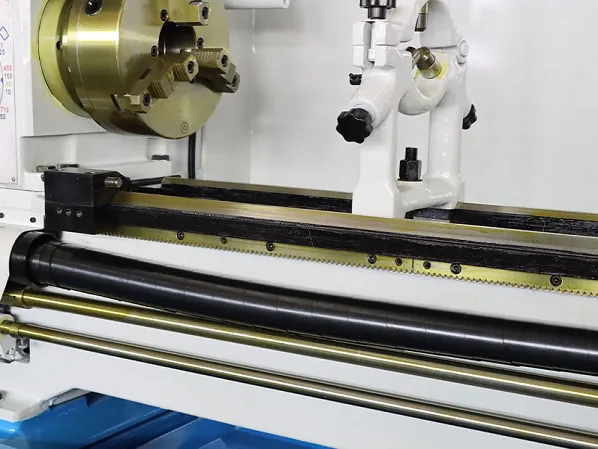

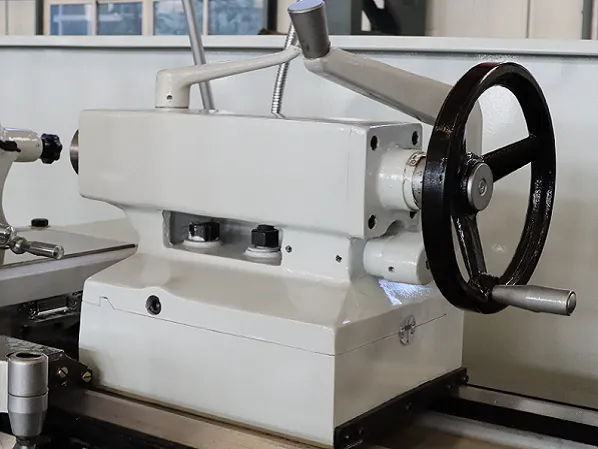

The main components of our precision engine lathes for sale are: spindle box, feed box, slide box, tool rest, tailstock, guide rod, lead screw, and bed. Discover the unmatched quality of our precision engine lathe machines available at competitive prices.
Accessories of Precision Engine Lathes:

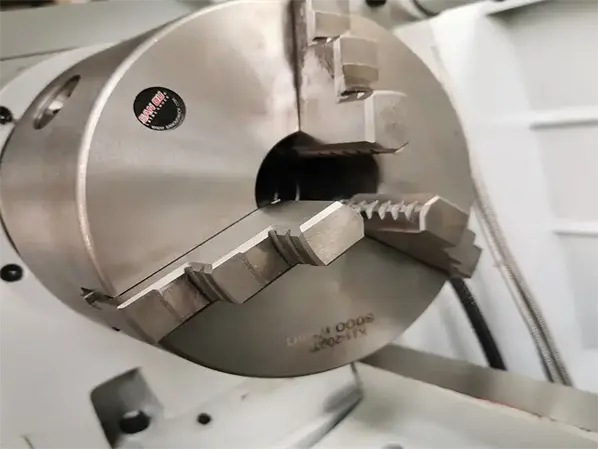

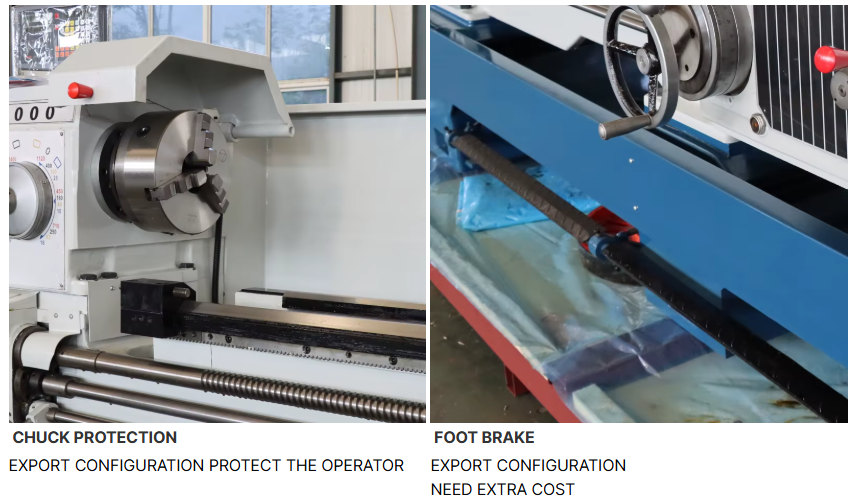

Three-jaw chuck (for cylindrical workpieces), four-jaw chuck (irregular workpieces)
Live center (for fixing workpieces)

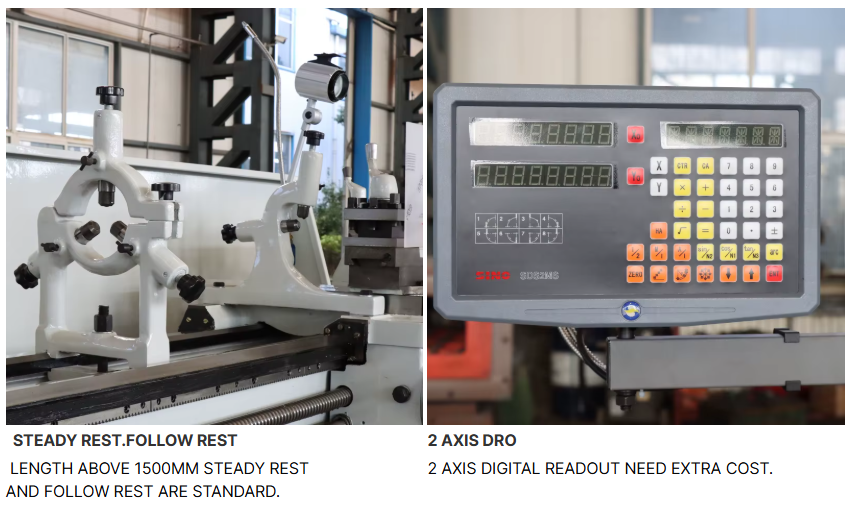

Center frame (stabilizes workpieces)
Tool rest
Main Features of Precision Engine Lathes:
Large low-frequency torque and stable output
High-performance vector control
Fast dynamic torque response and high steady-speed accuracy
Fast deceleration and parking speed
Strong anti-interference ability

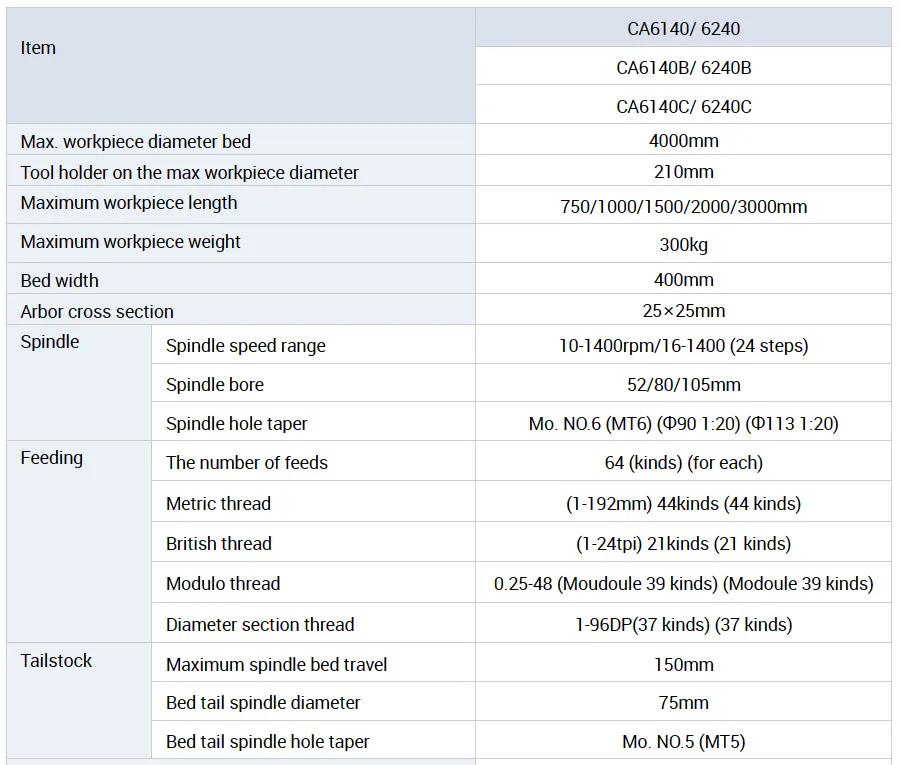

| Type | CA6140 | CA6150 | CA6161 | CA6166 |
| CA6240 | CA6250 | CA6261 | CA6266 | |
| Max. swing over bed | 400mm | 500mm | 610mm | 660mm |
| Max. swing over carriage | 210mm | 300mm | 370mm | 400mm |
| Max. swing in gap | 630mm | 720mm | 830mm | 880mm |
| Max. effective length in gap | 210mm | |||
| Max. length of workpiece | 750/1000/1500/2000/2200/3000/4000mm | |||

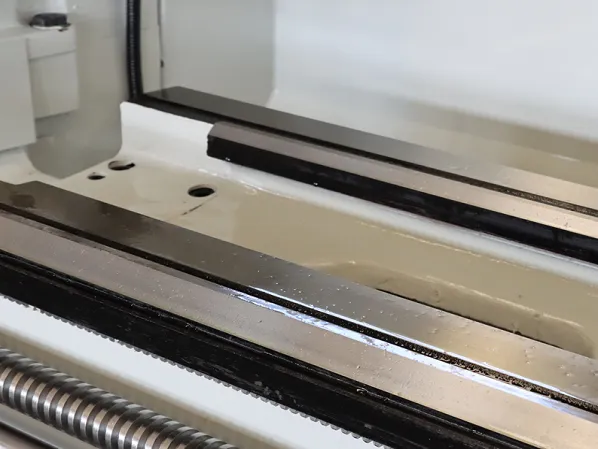

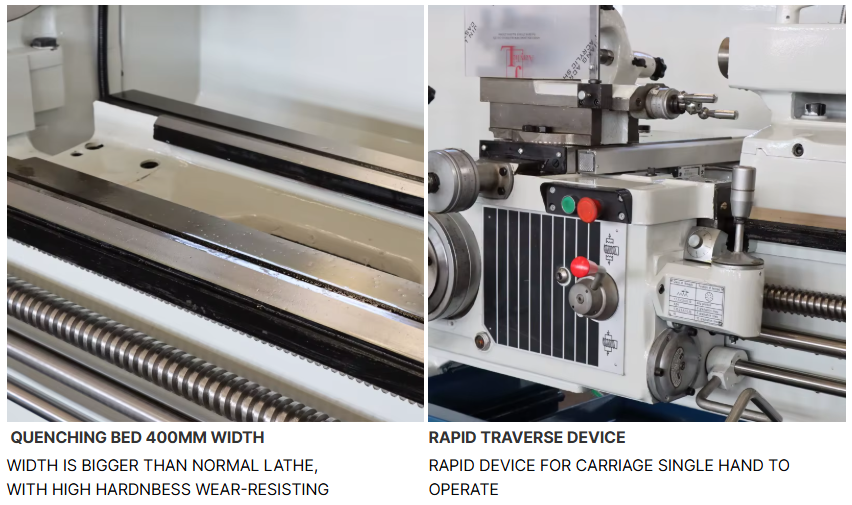

| Width of bed | 400mm | |||
| Section of turning tool | 25*25 mm | |||
| Main spindle motor | 7.5kw(10HP) | |||
| Spindle | ||||
| Spindle speed | 16--1400rpm(24step) | |||
| Spindle bore | 52mm (B: 80mm),(C: 105mm) | |||
| Spindle taper | No.6(MT6)(90 1:20)[113:20] | |||
| Feed | ||||
| NO. of feed | (64 kinds)(for each) | |||
| Range of metric threads | (1-192mm) (44 kinds) | |||
| Range of inch threads | (1-24tpi) (21kinds) | |||
| Range of module threads | 0.25-48 (module 39 kinds) | |||
| Range of diametral pitch threads | 1-96DP (37 kinds) | |||
| Tailstock | ||||
| Max. tailstock spindle travel | 150mm | |||
| Tailstock spindle diameter | 75mm | |||
| Taper of tailstock spindle centre hole | 1-96DP (37 kinds) | |||
The quick-change gearbox is a critical feature that enhances the versatility and efficiency of a metal engine lathe. Designed for seamless adjustments, this component allows machinists to swiftly alter spindle speeds and feed rates, ensuring optimal performance for various turning operations. Whether you're working on a precision engine lathe for detailed projects or a heavy-duty metal engine lathe in industrial settings, the gearbox minimizes downtime and boosts productivity.
For operators using a metal engine lathe, the quick-change gearbox eliminates manual belt adjustments, saving valuable time and reducing errors. This feature is particularly valuable in a precision engine lathe, where consistent speed control is essential for achieving flawless finishes. If you're considering an engine lathe for sale, prioritize models equipped with this advanced gearbox to streamline operations and enhance precision. Upgrade to a precision engine lathe with a quick-change gearbox today and experience unmatched efficiency in metalworking!
