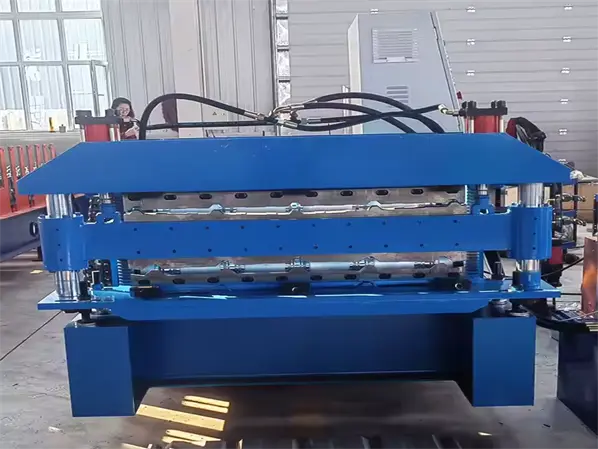

Boost Efficiency & Quality with Double-Layer Roof Roll Forming Machine
The double-layer roof roll forming machine is used to make roof panels. The biggest advantage of this double-layer roof roll forming machine is that it has two layers, allowing it to produce two types of roof panels on one machine. Customers can submit their sheet drawings or choose from our resources, and we will customize the double-layer roof roll forming machine to optimize production capacity. Transform your roofing production with cutting-edge double-layer roof roll forming machines.

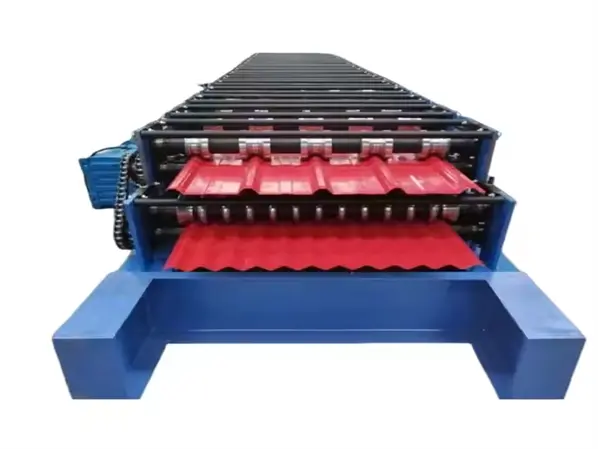

Full automatic Two-in-One Production: Produce two different roofing sheets on one double-layer roof roll forming machine, maximizing efficiency.

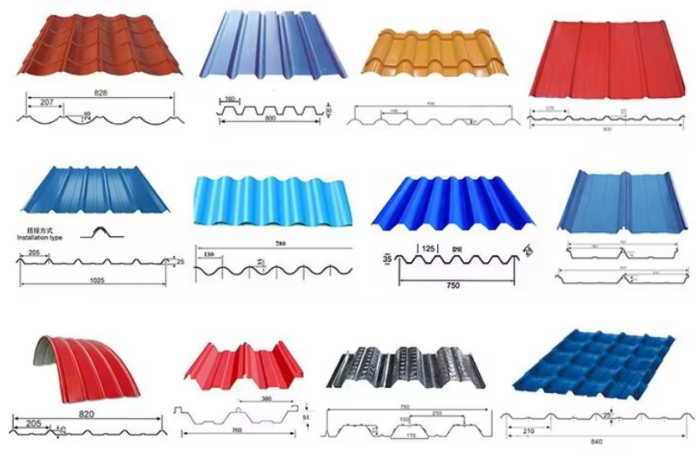

Customizable Profiles: Our double-layer roof roll forming machine supports custom roofing sheet drawings to match exact project requirements (submit your design or choose from our templates).
Durable Construction: The double-layer roof roll forming machine features high-quality steel with advanced surface treatment ensures long-term performance and corrosion resistance.
Space & Cost Savings: Eliminate the need for multiple machines with our double-layer roof roll forming machine, reducing factory footprint and operational expenses.
Fully Automatic Operation: User-friendly PLC control system of the double-layer roof roll forming machine enables easy setup and precision rolling, minimizing manual labor.
Upgrade your production line with our double-layer roof roll forming machine, designed for high-speed, low-waste roofing sheet manufacturing. Partner with excellent roof roll forming machine manufacturers like ShanQuan for top-quality solutions!
Metal Double Layer Roll Forming Machine, Corrugated Sheet Rolling Machine, IBR Roof Sheet, Roof Tile Making Machine | ||||
Formed Material | PPGI, GI, AI | Thickness: 0.3-0.8mm Width: 1500mm(customized) | ||
Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||

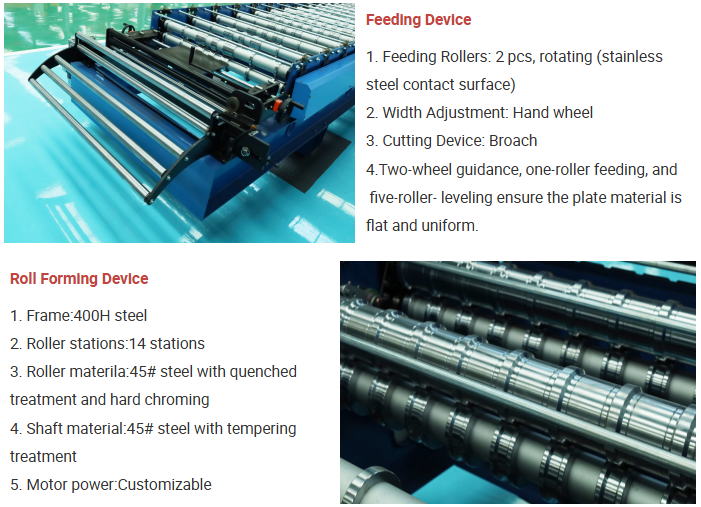

Main body | Roller station | Up layer: 13 rollers Down layer: 15 rollers | ||
Diameter of shaft | 80mm solid shaft | |||
Material of rollers | 45# steel, hard chrome plated on the surface | |||
Machine body frame | 350 H steel welded | |||
Drive | Gear and chain transmission | |||

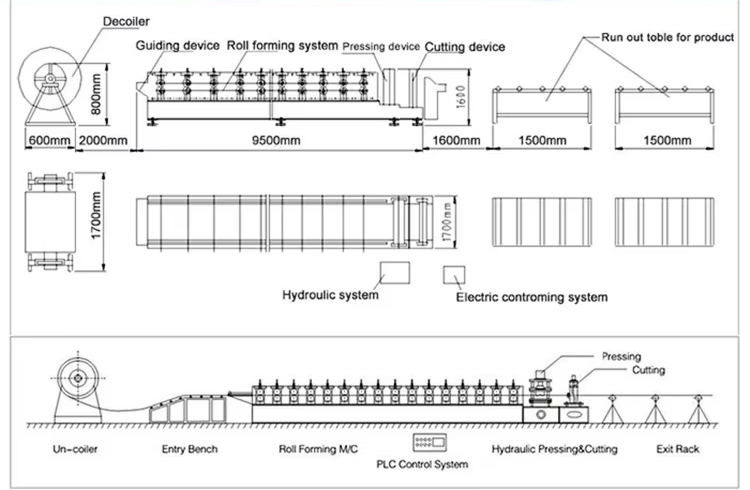

Dimension(L*W*H) | About 8500*1650*1500mm | |||
Weight | 6.5T | |||

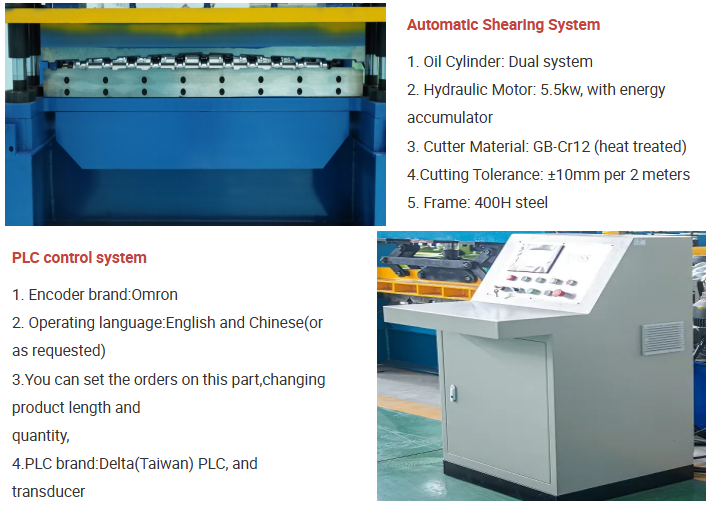

Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
Power | Main power | 5.5kw | ||
Hydraulic station | 4.5kw with cooling fan for long time using | |||
Voltage | 380V 50Hz 3Phase | As your requirement | ||
Control system | Electric Box | Customized(famous brand) | ||
Language | English(Support multiple languages) | |||
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
Forming Speed | 0-35m/min or as your requests | The speed depends on the shape of the tile and the thickness of the material. | ||
Our advanced double-layer roof roll forming machines ensure unmatched durability and structural integrity. Investing in a double-layer roof roll forming machine enhances productivity and allows for greater customization in roofing designs. Upgrade your roofing production today with the industry-leading double-layer roof roll forming machines.
