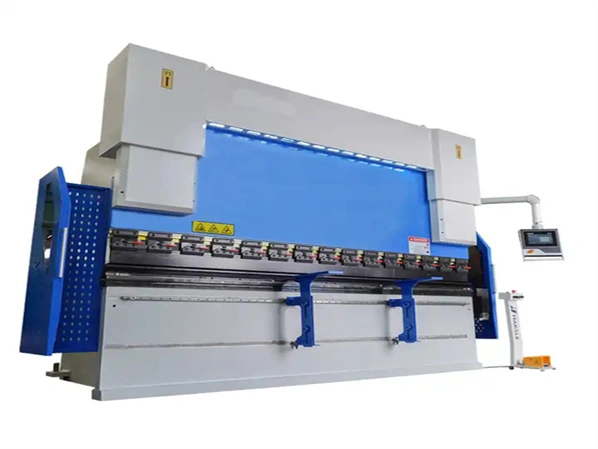

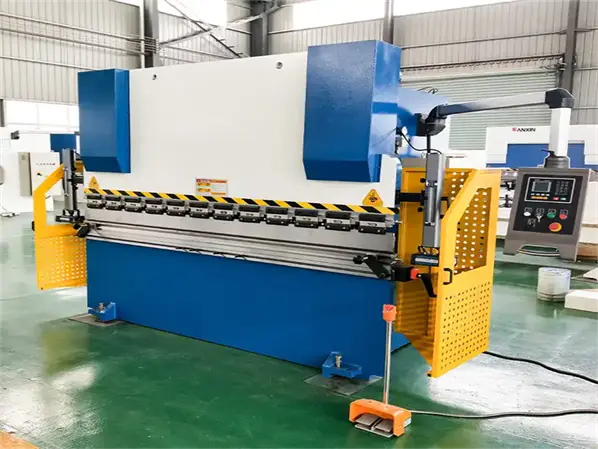

Hydraulic Press Brake Machine

As a leading hydraulic press brake machine manufacturer and supplier in China, ShanQuan understands that the hydraulic control system serves as the core intelligence of every CNC hydraulic press brake machine. The competitive hydraulic press brake machine price reflects our commitment to providing value to our clients.


In production, these CNC hydraulic bending machines demand high automation and standardization — which is why our hydraulic systems utilize precisely calibrated control methods. The market has widely recognized various structural types and principles used in our hydraulic press brake machines for sale.

Get a Quote
Products

Features of Hydraulic Press Brake Machine

As trusted hydraulic press brake machine manufacturers and suppliers from China, we proudly present the exceptional features of our CNC hydraulic press brake machine:


  • Advanced Hydraulic Transmission: Our hydraulic press brake machine for sale utilizes hydraulic oil cylinders placed at both ends to drive the sliding work directly, ensuring smooth and powerful operation.

  • Robust Mechanical Block Structure: Built for stability and reliability, our CNC hydraulic bending machine guarantees long-lasting performance under demanding conditions.

  • Precise Slide Stroke Adjustment: Quickly and manually adjust the slide stroke with an easy-to-read digital counter, maximizing efficiency in your workflow.

  • All-Steel Welded Construction: Our hydraulic press brake machine from China features an all-steel welded frame, delivering unmatched strength and rigidity for heavy-duty bending tasks.

  • Torsion-Axle Forced Synchronization: The CNC hydraulic press brake machine incorporates a torsion-axle synchronization mechanism to maintain consistency and precision in every bend.

  • Wedge-Type Deflection Compensation: Designed for high bending accuracy, our hydraulic press brake machine minimizes deflection, ensuring perfect results every time.




Technical Specification of Hydraulic Press Brake Machine

ModelBending ForceBending LengthDaylight distanceThroat DepthRam StrokeOpen HeightMain MotorOverall Dimensions
UnitKNmmmmmmmmmmKWL*W*H mm
WC67K/E-30t/160030016001300200803205.51650*1200*1700
WC67K/E-30t/200030020001300200803205.52000*1200*1700
WC67K/E-40t/2500400250020302501003405.52500*1200*1900
WC67K/E-63t/2500630250020502501203405.52500*1350*2100
WC67K/E-63t/3200630320025102501203405.53200*1350*2100
WC67K/E-80t/2500800250020502501203505.52500*1400*2150
WC67K/E-80t/3200800320025102501203505.53200*1400*2150
WC67K/E-100t/25001000250020503201203807.52500*1500*2200
WC67K/E-100t/32001000320025103201203807.53200*1500*2300
WC67K/E-100t/40001000400031003201203807.54000*1500*2400
WX67Y-100t/40001000400031004201604357.54000*1650*2500
WC67K/E-125t/32001250320025103201203807.53200*1600*2350
WC67K/E-125t/40001250400031003201203807.54000*1600*2450
WX67Y-125t/40001250400031004201604357.54000*1700*2500
WC67K/E-160t/2500160025002050320200450112500*1650*2700
WC67K/E-160t/3200160032002510320200450113200*1650*2800
WC67K/E-160t/4000160040003040320200450114000*1650*2800
WC67K/E-160t/5000160050003800320200450115000*1750*3100
WC67K/E-160t/6000160060004600320200450116000*1750*3300
WC67K/E-200T/3200200032002600320250540153200*1900*3100
WC67K/E-200T/3200C200032002510320200450113200*1650*2800
WC67K/E-200T/4000200040003300320250540154000*1900*3100
WC67K/E-200T/4000C200040003040320200450114000*1650*2800
