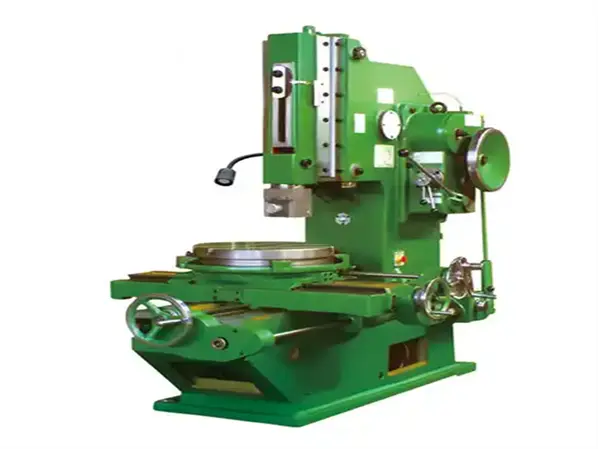

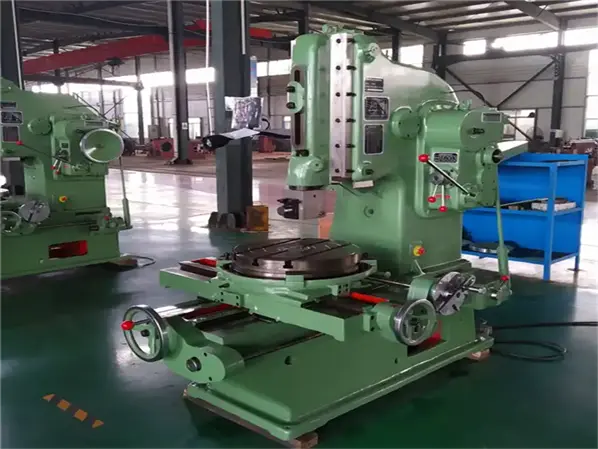

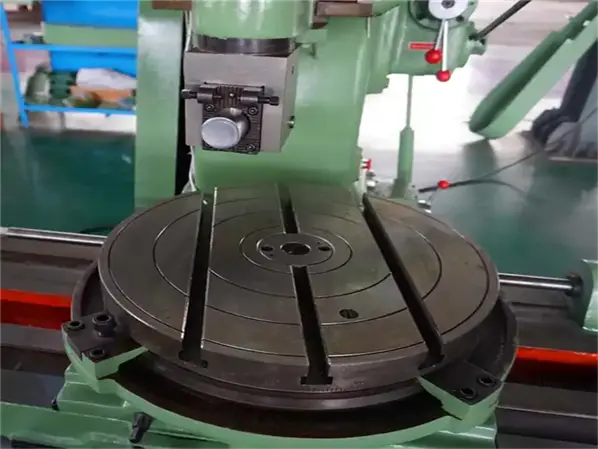

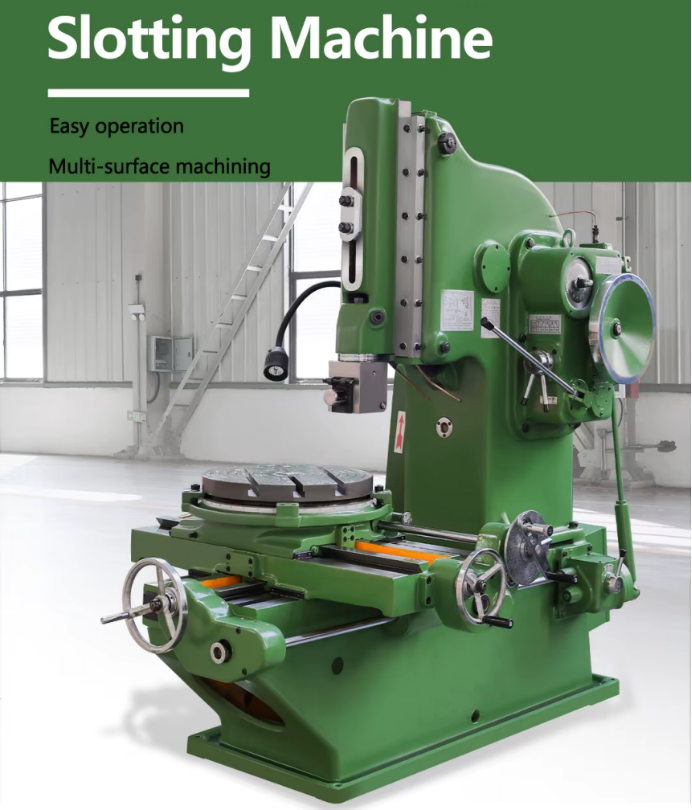

The slotting machine is used to slot planes, molding surfaces, keyways, etc., and can slot molds and other workpieces with an inclination within 10°. It is suitable for enterprises with single or small batch production. The slotting machine's worktable has three different directions of feed (longitudinal, horizontal and rotary), so after the workpiece is clamped once, several surfaces can be processed on this machine.
The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary),therefore work object go through once clamping, Several surfaces in the machine tool machining.

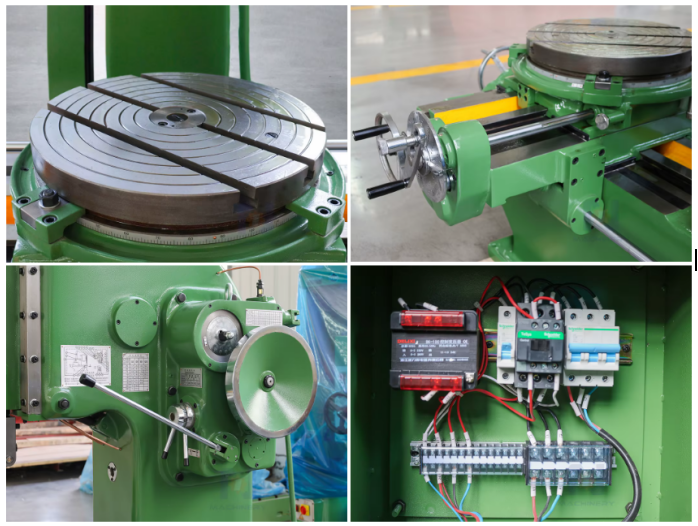

Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer.
Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.
| Specification | Unit | B5020 | B5032 | B5050 | B5063 |
| Max. Slotting length | mm | 220 | 320 | 500 | 630 |
| Worktable size | mm | 500*500 | 630*560 | 1000*660 | 1120*700 |
| Ram vertical adjustment distance | mm | 230 | 315 | 430 | 500 |
| Table Diameter | mm | 500 | 630 | 1000 | 1120 |
| Vertical and horizontal table power feed range | mm | 0.08-1.21 | 0.08-1.21 | 0.1-1.2 | 0.1-1.2 |
| Table rotary feed range | mm | 0.052-0.783 | |||
| Motor power | kw | 3 | 4 | 7.5 | 10 |
| Machine weight | kg | 2200 | 3000 | 10000 | 10500 |
| Outline dimension | mm | 1916*1305*1995 | 2261*1495*2245 | 3480*2085*3307 | 3580*2390*3660 |
