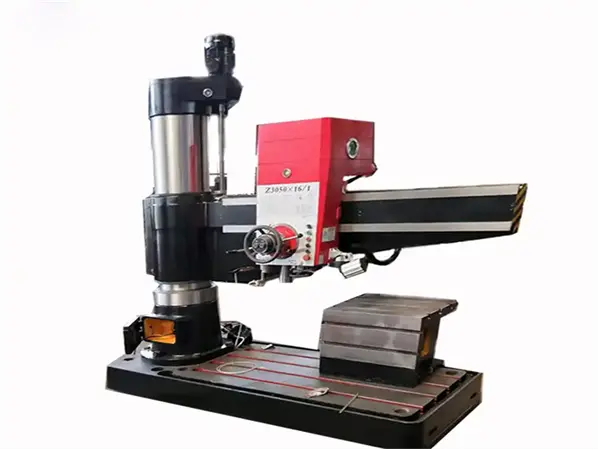

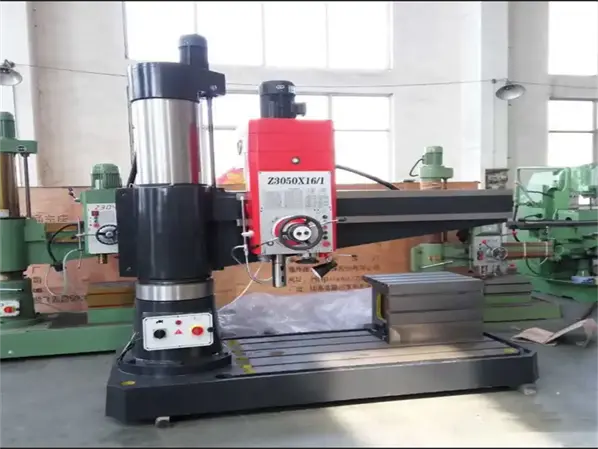

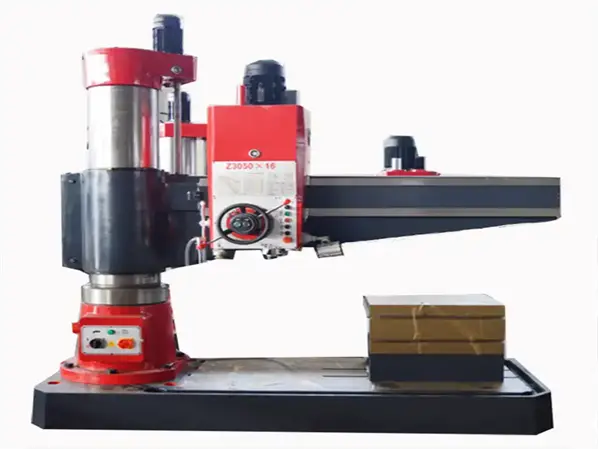

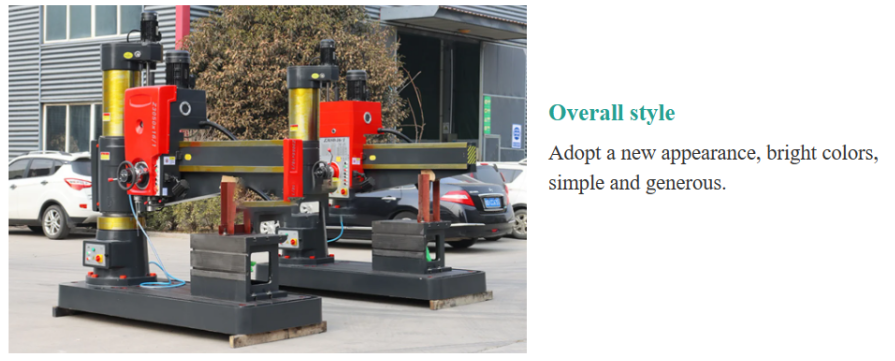

Hydraulic radial drilling machines are widely used in single-piece and small- and medium-sized batch production to process holes in workpieces with large volume and weight. Hydraulic radial drilling machines have a wide range of processing and can be used to drill various screw holes, threaded bottom holes and oil holes on large workpieces. Hydraulic radial drilling machines are used to process small and medium-sized holes on bulky or porous workpieces. They are mainly composed of a base, a column, a rocker arm, a spindle box, a spindle worktable, etc. When the hydraulic radial drilling machine is working, the rocker arm can rotate around the column, and the spindle box can move radially on the rocker arm. In this way, the drill bit can be aligned with the axis of each hole to be processed, so as to facilitate hole processing. It is more flexible to use.
The hydraulic pre-selection speed change mechanism can save auxiliary time;

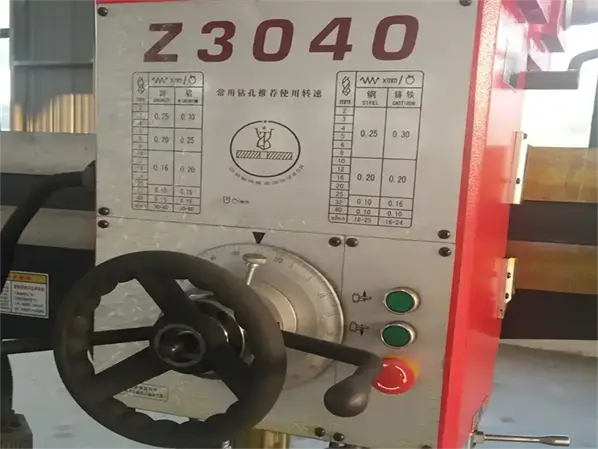

The spindle forward and reverse rotation, parking (braking), speed change, neutral gear and other actions are controlled by one handle, which is easy to operate;
The main shaft box, rocker arm, inner and outer columns adopt a hydraulically driven diamond block clamping mechanism, which is reliable;

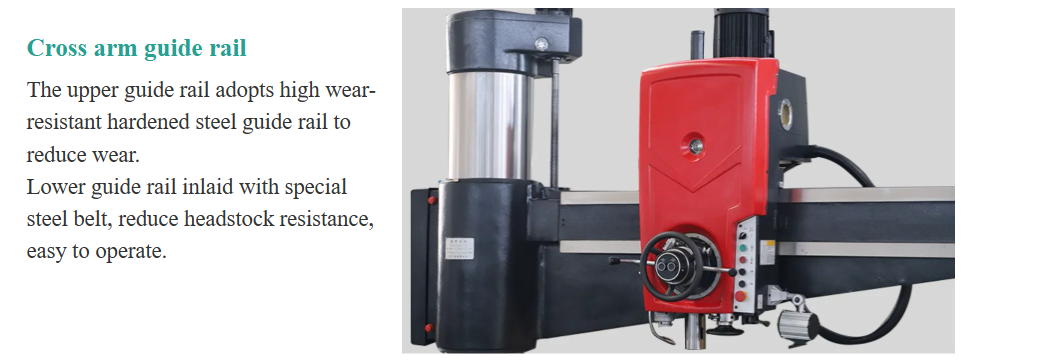

The guide rail on the rocker arm, the spindle sleeve and the inner and outer column rotary raceway are all quenched to extend the service life;
In addition to manual movement, the spindle box can also be moved mechanically;
There are complete safety protection devices and outer column protection and automatic lubrication devices;
| Item | Unit | Z3040x16/1 | Z3050x16/1 | Z3063x20/1 | Z3080x25 | Z30100x31 | |
| Maximum drilling diameter | mm | 40 | 50 | 63 | 80 | 100 | |
| Spindle center line to column bus distance | max | mm | 1600 | 1600 | 2000 | 2500 | 3150 |
| min | mm | 350 | 350 | 450 | 500 | 570 | |
| Spindle nose to base working space | max | mm | 1250 | 1220 | 1600 | 2000 | 2500 |
| min | mm | 350 | 320 | 400 | 550 | 750 | |

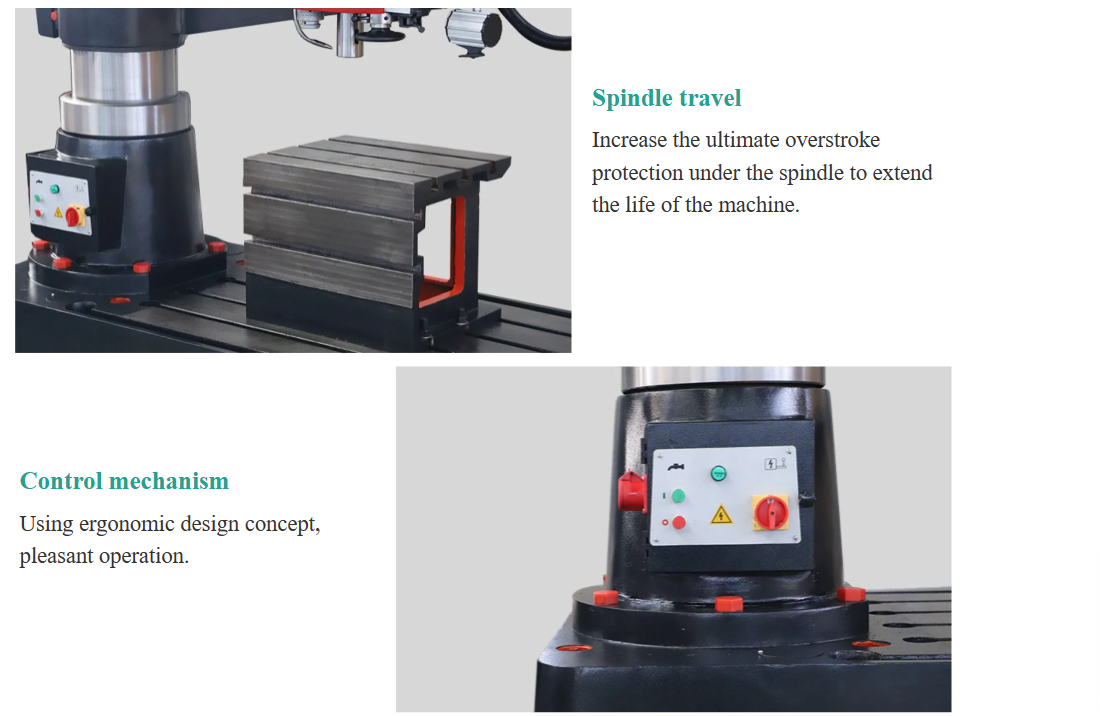

| Spindle travel | mm | 315 | 315 | 400 | 450 | 500 | |
| Spindle taper | Mohs4 | Mohs5 | Mohs5 | Mohs6 | Mohs6 | ||
| Spindle speed range | r/min | 25-2000 | 25-2000 | 25-1600 | 16-1250 | 8-1000 | |
| Spindle speed | level | 16 | 16 | 16 | 16 | 22 | |
| Spindle feed range | mm/r | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.06-3.2 | |
| Spindle feed level | level | 16 | 16 | 16 | 16 | 16 | |
| Worktable size | mm | 630*500*500 | 630*500*500 | 800*630*500 | 1000*800*560 | 1250*800*630 | |
| Horizontal movement of headstock arm | mm | 1250 | 1250 | 1550 | 2000 | 2580 | |
| Spindle allows maximum torque | N.M | 400 | 500 | 980 | 1568 | 2450 | |
| Main motor power | kW | 3 | 4 | 5.5 | 7.5 | 15 | |
| Rocker arm lifting distance | mm | 580 | 580 | 800 | 1000 | 1250 | |
