Innovation Leads the Trend, Quality Drives Value
Laser welding machine is a new generation of laser welding products, using high-quality laser source. The whole machine adopts integrated design, beautiful appearance,stable performance, easy installation, simple operation and high safety. It has the characteristics of fast welding speed, high efficiency, good welding effect, less welding materials, long life and environmental protection.
It can be widely used in welding of kitchen appliances, door and window guardrails, stair elevators, stainless steel furniture, metal sheet, advertising brands, craft gifts, car repair, automobile manufacturing, rail transportation, aerospace and other industries.
The laser welding machine reduces the requirements of parts for clearance and further improves the welding quality.It can also be used in conjunction with robots. The welding gun can be fixed on the collaborative robot to reduce the labor intensity of the operator and improve the welding quality of the weld.
1. The internal design is smart and the interactive control system is good, which expands the tolerance range and weld width of the workpiece, solves the disadvantage of small spot and makes the weld effect better.
2. Lightweight appearance, ergonomic design method, comfortable to hold, easy to operate with one hand, simple operation and convenient to use.
3. With multiple safety alarms, the light is automatically locked after the workpiece is removed, high safety.
4. Beautiful weld, fast speed, no consumables, no welding marks, no discoloration, no deformation,no need for post-polishing.

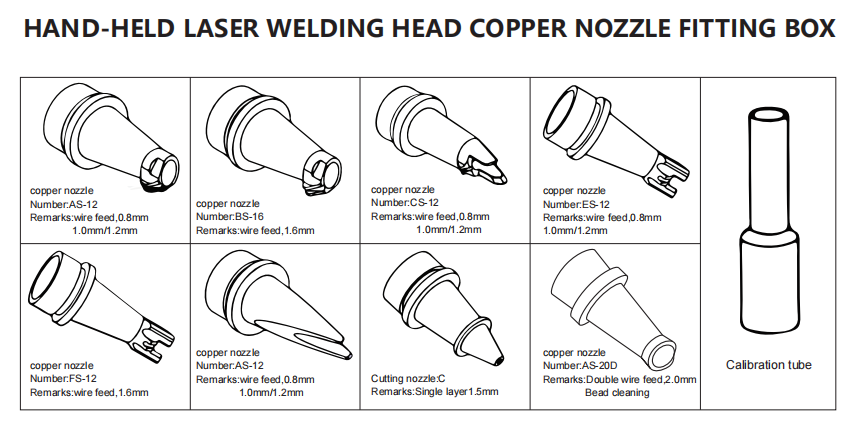

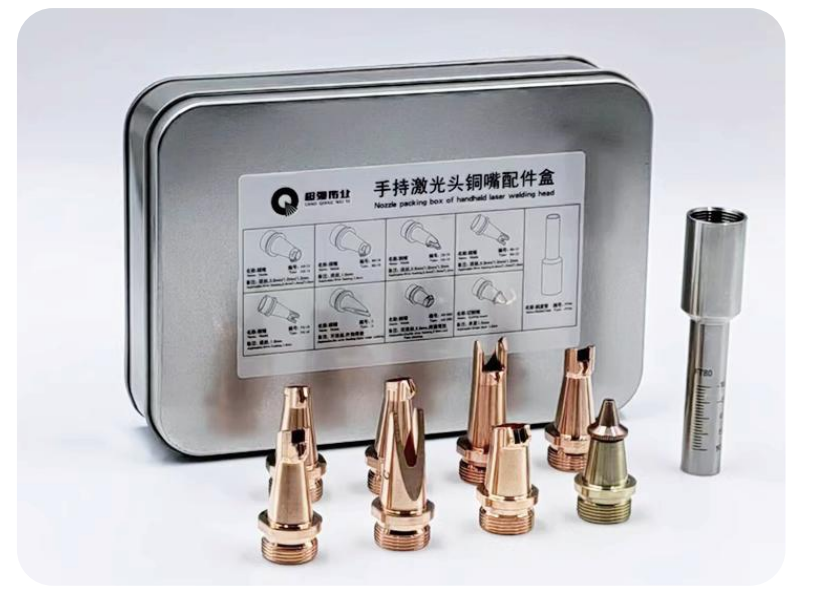

5. Multiple angle nozzles can be configured to meet the welding needs of different products.

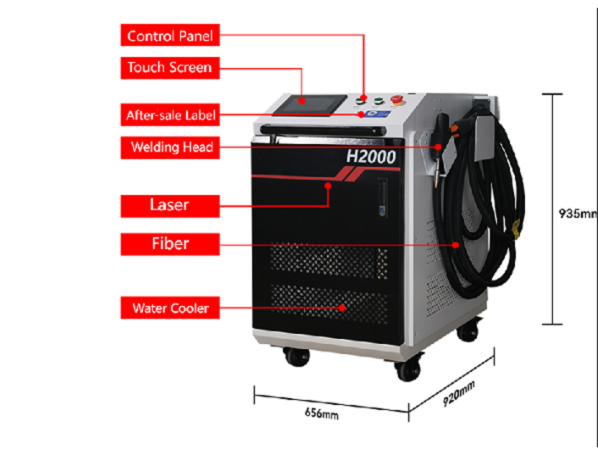

| Main Parts | Parameters | Specifications | |
| Handheld laser welding machine | Model No | H-3000 | |

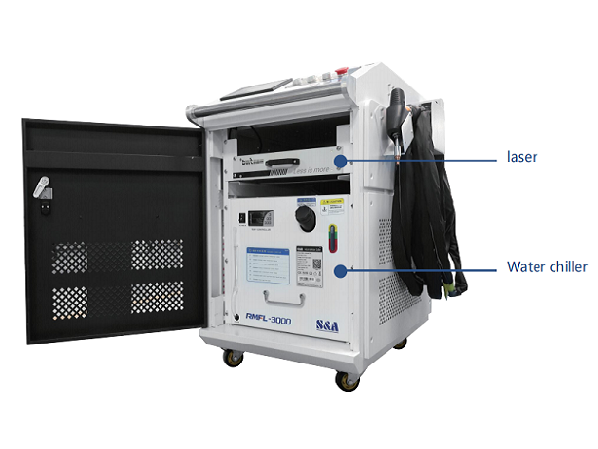

| Laser source (BWT / Raycus / Max optional) | Laser power | 3000w | |
| Wave length | 1080nm±5 | ||
| Water chiller | Capacity | 16L | |

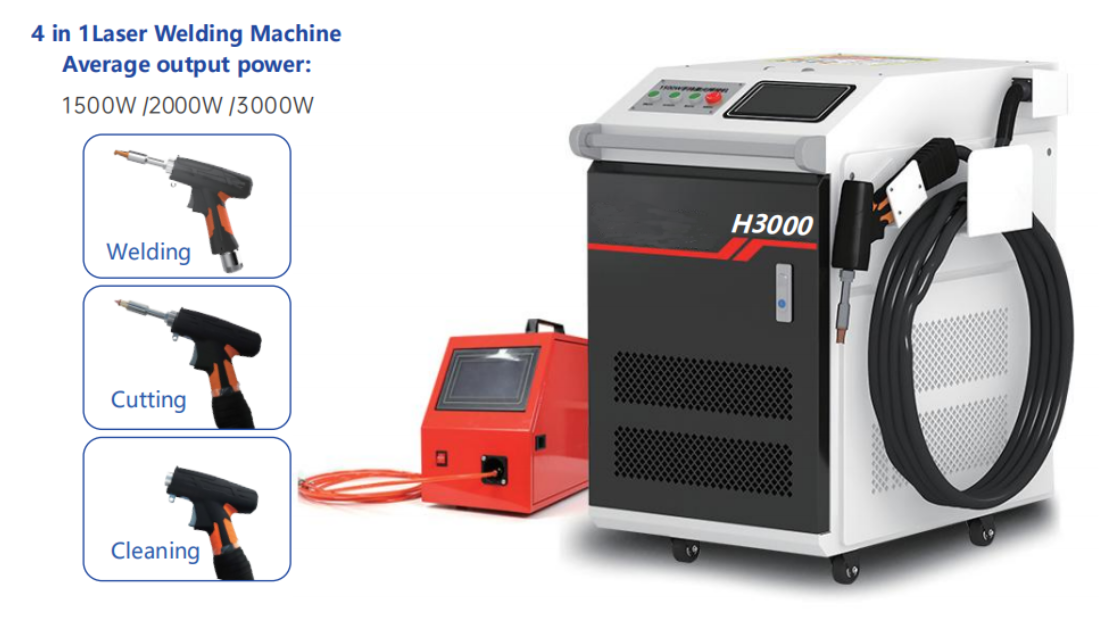

| Welding gun | 4 in 1 | Welding , cutting, cleaning, weld cleaning | |
| Welding thickness | Carbon steel | 0.1-8mm | |
| Stainless steel | 0.1-8mm | ||
| Aluminium | 0.1-6mm | ||
| Galvanized sheet | 0.1-8mm | ||
| Machine Info | Dimension | 750*1050*1230mm | |
| Gross power | 11.5KW | ||
| Input voltage | Can be customized | ||
| Warranty | 2 Years | ||
| Language | Chinese / English / Korean / Russian / German / French / Arabic / Portuguese / Spanish / Japanese / Thai / Vietnamese / Romanian / Polish / Slovak / Czech / Greek / Turkish | ||
| Packing size | 1450*830*1500mm | Weight | 270kg |

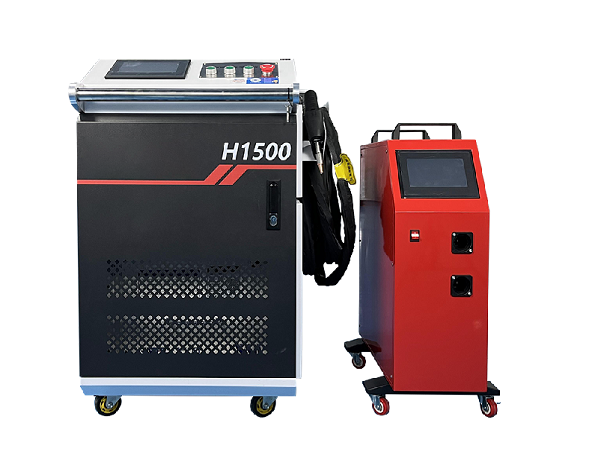

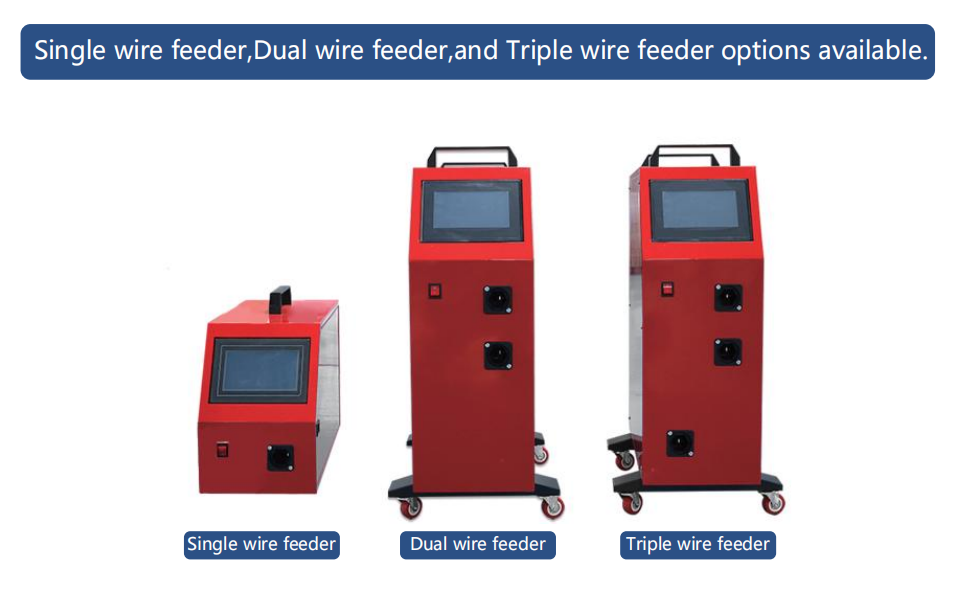

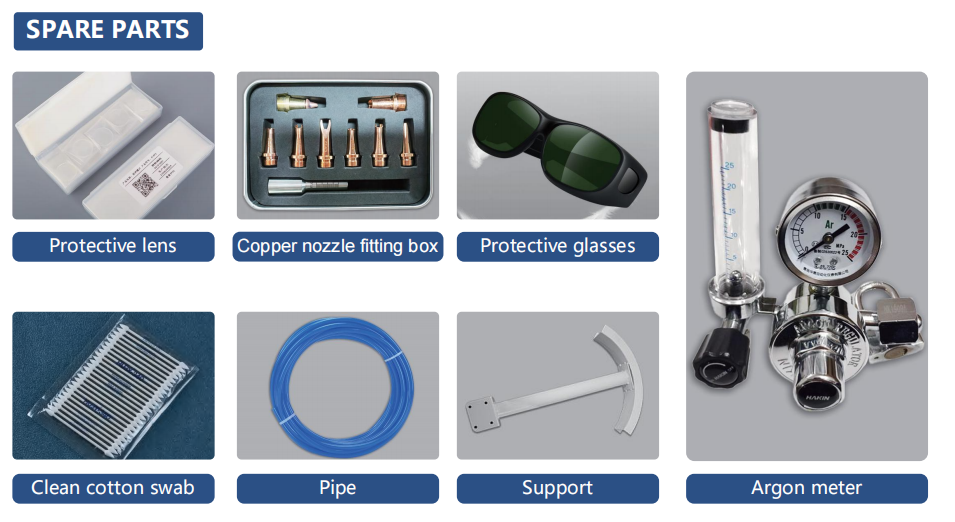

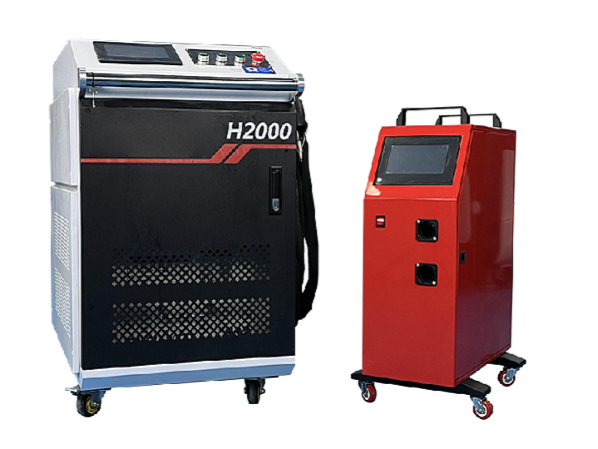

| Packing list | Handheld laser welding machine*1, Wire feeder*1, Spare parts*1 | ||
