The radial drilling machine is a drilling machine with a rocker that can rotate and rise and fall around a column, and the spindle box usually moves horizontally on the rocker. When machining holes on a vertical drilling machine, the centering of the tool and the workpiece is achieved by moving the workpiece, which is obviously very inconvenient for some large and heavy workpieces; while a radial drilling machine can use the position of the moving tool axis for centering, which greatly facilitates the machining of holes on large and heavy workpieces in single-piece and small-batch production. It can be used for drilling, reaming, boring, tapping, and scraping end faces. According to the clamping structure of the machine tool, radial drilling can be divided into hydraulic radial drilling machines and mechanical radial drilling machines.

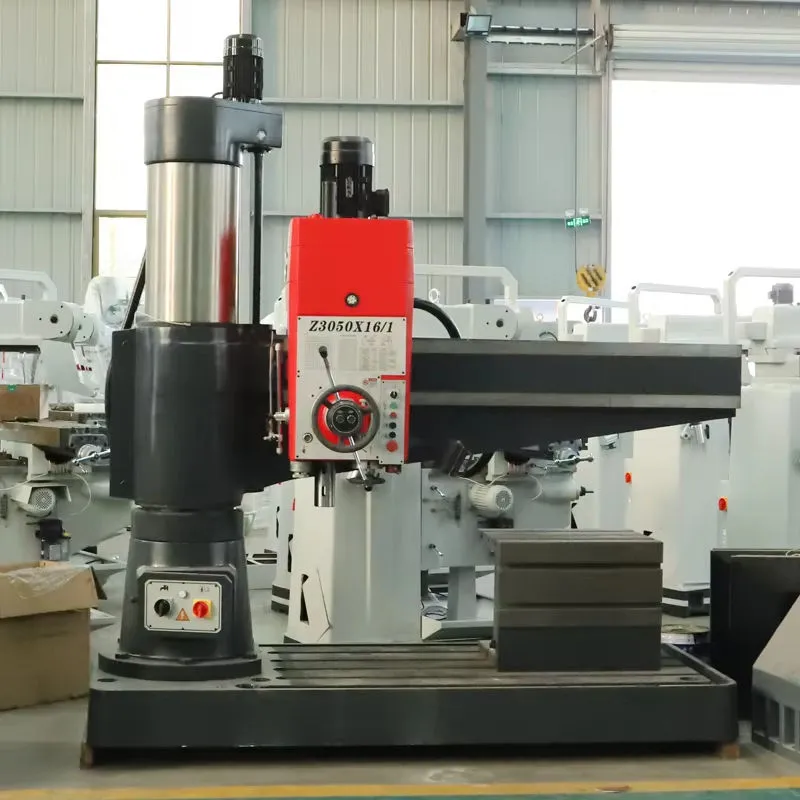

Watch the video below to see the Z3040 radial drilling machine in action. This demonstration highlights the machine's drilling performance, spindle movement, arm rotation, and overall operating stability in a real workshop environment. As a versatile radial arm drilling machine, the Z3040 is designed for accurate hole-making on medium and large workpieces across fabrication, machinery manufacturing, and maintenance applications. Whether you are evaluating a heavy duty radial drill machine for industrial production or comparing different industrial radial arm drill press solutions, this demonstration provides a practical overview of the machine's capabilities and daily working performance.
Designed for demanding industrial applications, this precision drilling machine offers stable performance and reliable operation across a wide range of drilling tasks.
Dual-speed motor;
Single handle speed change;
Interlock clamping;
Mechanical and electrical double insurance;
Power off when opening the door, emergency stop button.
| Item | Unit | Z3040x16/1 | Z3050x16/1 | Z3063x20/1 | Z3080x25 | Z30100x31 | |
| Maximum drilling diameter | mm | 40 | 50 | 63 | 80 | 100 | |
| Spindle center line to column bus distance | max | mm | 1600 | 1600 | 2000 | 2500 | 3150 |
| min | mm | 350 | 350 | 450 | 500 | 570 | |
| Spindle nose to base working space | max | mm | 1250 | 1220 | 1600 | 2000 | 2500 |
| min | mm | 350 | 320 | 400 | 550 | 750 | |
| Spindle travel | mm | 315 | 315 | 400 | 450 | 500 | |
| Spindle taper | Mohs4 | Mohs5 | Mohs5 | Mohs6 | Mohs6 | ||
| Spindle speed range | r/min | 25-2000 | 25-2000 | 25-1600 | 16-1250 | 8-1000 | |
| Spindle speed | level | 16 | 16 | 16 | 16 | 22 | |
| Spindle feed range | mm/r | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.06-3.2 | |
| Spindle feed level | level | 16 | 16 | 16 | 16 | 16 | |
| Worktable size | mm | 630*500*500 | 630*500*500 | 800*630*500 | 1000*800*560 | 1250*800*630 | |
| Horizontal movement of headstock arm | mm | 1250 | 1250 | 1550 | 2000 | 2580 | |
| Spindle allows maximum torque | N.M | 400 | 500 | 980 | 1568 | 2450 | |
| Main motor power | kW | 3 | 4 | 5.5 | 7.5 | 15 | |
| Rocker arm lifting distance | mm | 580 | 580 | 800 | 1000 | 1250 | |
1.Product Range and Customization
As a reliable supplier, we offer multiple machine configurations, from a standard plain radial drilling machine to a fully featured hydraulic radial drilling machine, allowing customers to select the right solution for different production requirements.
2.Manufacturing Quality
High-quality castings, precision-machined components, and strict assembly standards directly influence machine rigidity, drilling accuracy, and service life. As an established radial drilling machine manufacturer, we maintain more consistent quality control throughout production.
3.Operational Flexibility
Modern radial arm drilling machine models provided, smooth arm movement, wide working ranges, and efficient spindle positioning.
4.After-Sales Support and Spare Parts Availability
Access to technical assistance, replacement parts, and maintenance guidance helps minimize downtime and protects your investment over the long term.
As one of the trusted radial drilling machine suppliers in China, Shanquan Machinery provides durable solutions designed for industrial applications. Our equipment is engineered to deliver stable performance, ease of operation, and lasting reliability.
