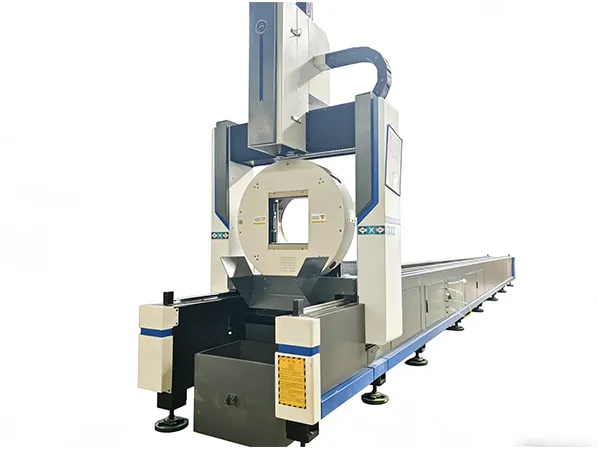

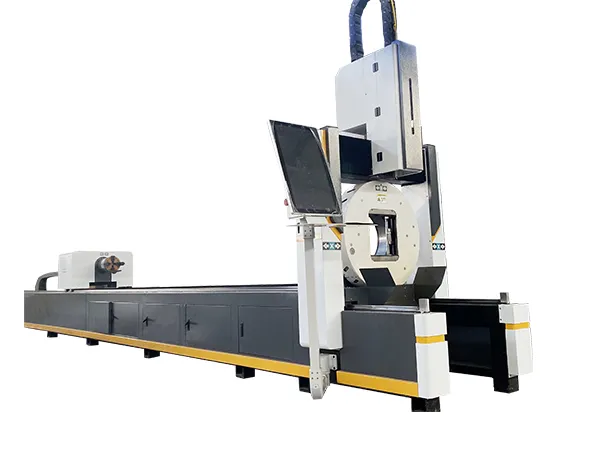

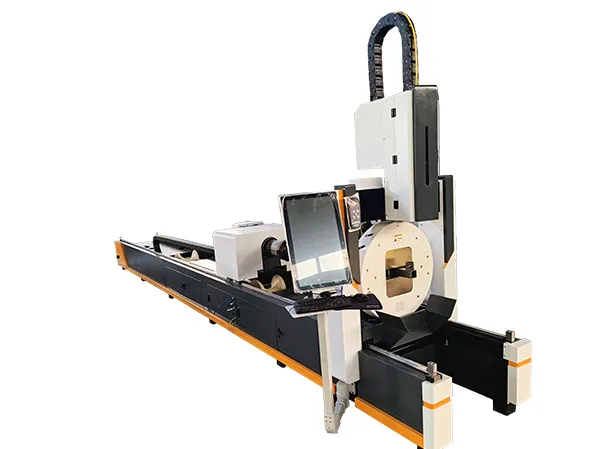

Laser cutting is the most widely used processing method in material laser processing. The 60240 series laser pipe cutting machine produced by our company adopts high power fiber lasers, equipped with precision linear guides and high-precision rack and pinion transmission mechanisms. The CNC laser cutting machine is a collection of precision CNC laser cutting machines. High-tech products such as cutting,precision machinery, numerical control technology, etc.,mainly used for round tubes, square tubes, rectangular tubes,Corner steel，Flat steel， H-beam，groove steel of ordinary carbon steel, stainless steel and other materials etc.
1. High Efficiency: Fast cutting speed, compatible with automatic loading and unloading, enabling continuous unmanned production, with overall efficiency far exceeding traditional sawing and punching.
2.High Precision: High positioning accuracy, burr-free and slag-free cut surfaces, excellent dimensional consistency, typically requiring no secondary grinding before direct use.
3.Material Saving: Intelligent tail material cutting technology reduces residual material length to near zero, significantly improving pipe utilization.

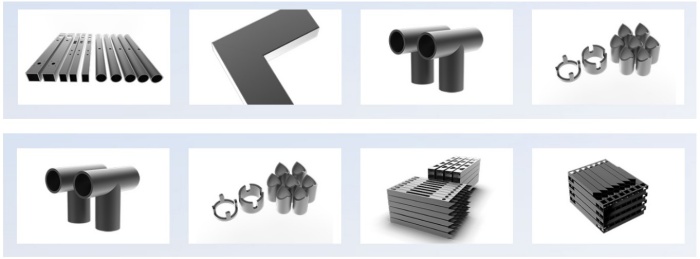

4.Wide Flexibility: Capable of cutting various irregularly shaped pipes such as round pipes, square pipes, angle steel, and H-beams, and can complete multiple processes such as beveling, cutting, and drilling in one operation.
5.Intelligent Operation: Built-in process parameter library, low operating threshold; equipped with an automatic support and clamping system, reducing manual intervention and labor intensity.
No. | Name | Parameter | Unit |
1 | Pipe processing dimensions | Round Pipe Φ10mm-φ240mm,Square tube, H steel，rectangular tube, flat steel， long≤ 240mm,L ≤ 6300mm; | mm |
2 | X-axis travel | 245 | mm |
3 | Y-axis travel | 6300 | mm |
4 | Z-axis travel | 150 | mm |
5 | X, Y-axis positioning accuracy | ±0.03/1000mm | mm |
6 | The X, Y-axis repeated positioning accuracy | ±0.02/1000mm | mm |
7 | accelerated speed；accelerated velocity；acceleration | 1G | m/s² |
8 | The X, Y-axis has a maximum operating speed | 80 | m/min |
9 | Maximum dial speed | 70 | r/min |
10 | Taiiling length | ＜ 30mm (depending on workpiece length and specific process condition) | mm |
11 | Main machine appearance (length, width and height) | About 7800 × 1350 × 1750 | mm |
12 | laser power | 3000W | w |
13 | control system | Raytools | |
14 | Complete power | 15 | Kw |
15 | Power supply requirements | Can be customized | V |
16 | Cut thickness | Batch cutting of materials up to 18 mm，The thickest cut is 10 mm | mm |
